Altoz · Tracked zero-turn mower
TFX 766 i
Tracked capability.
High visibility.
Purpose-built for roadside verges, municipal sites and infrastructure maintenance. All-terrain tracks, a 66-inch cutting deck and a compact body help you work through demanding ground.
A$52,000 ex GST

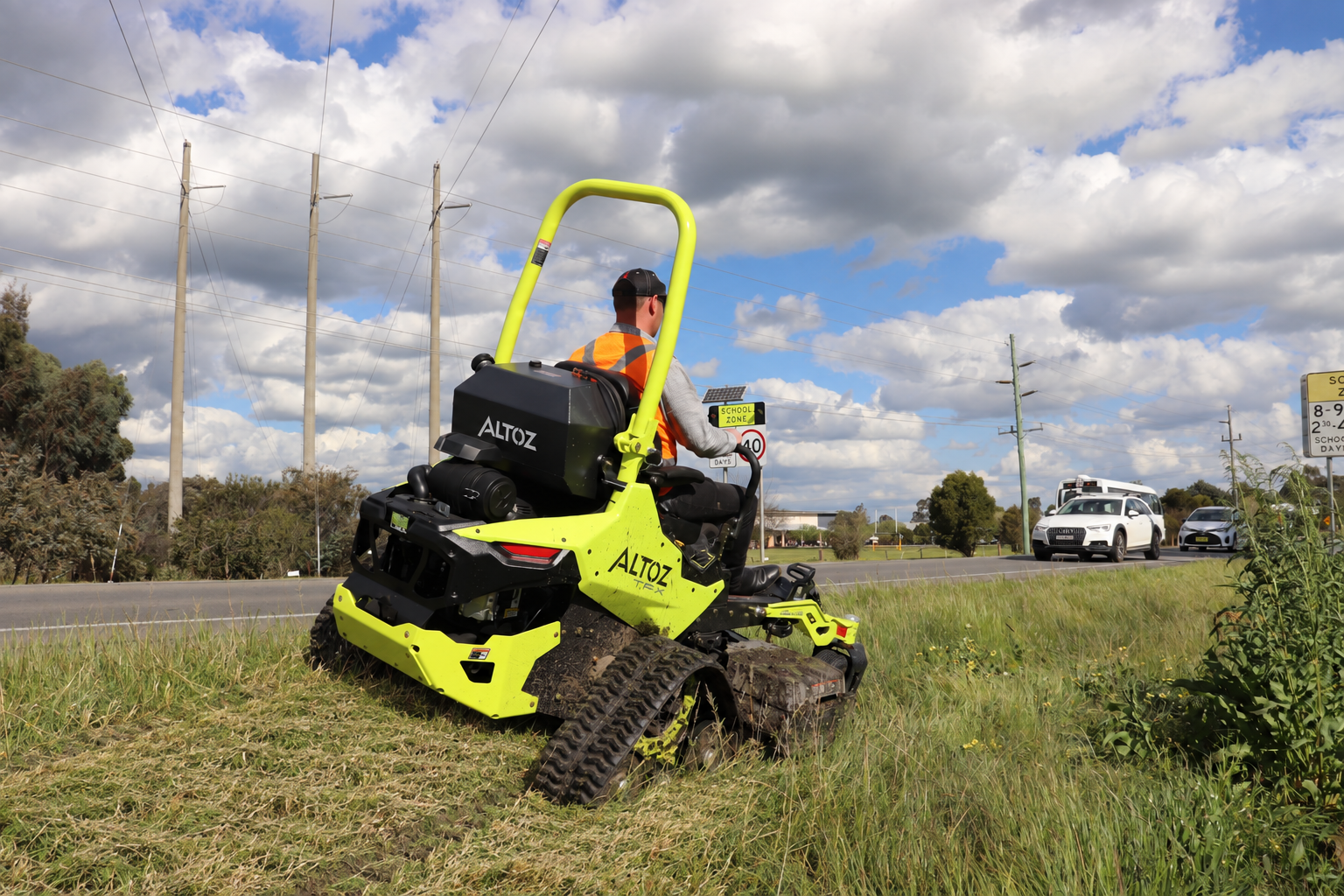

High visibility for roadside mowing
Built to work.
Designed to be seen.
The TFX’s distinctive high-visibility colour is made to stand out. Designed with roadside mowing in mind, its bright finish helps the machine remain visible against grass and surrounding vegetation. Add tracked traction and zero-turn manoeuvrability, and you have a mower built for demanding maintenance sites.
Roadsides & reserves
Manage long grass and uneven ground across verges, open spaces and municipal maintenance sites.
Infrastructure maintenance
A compact body and optional deck wing help extend your reach around solar arrays, fence lines and site obstacles.
Retention areas & banks

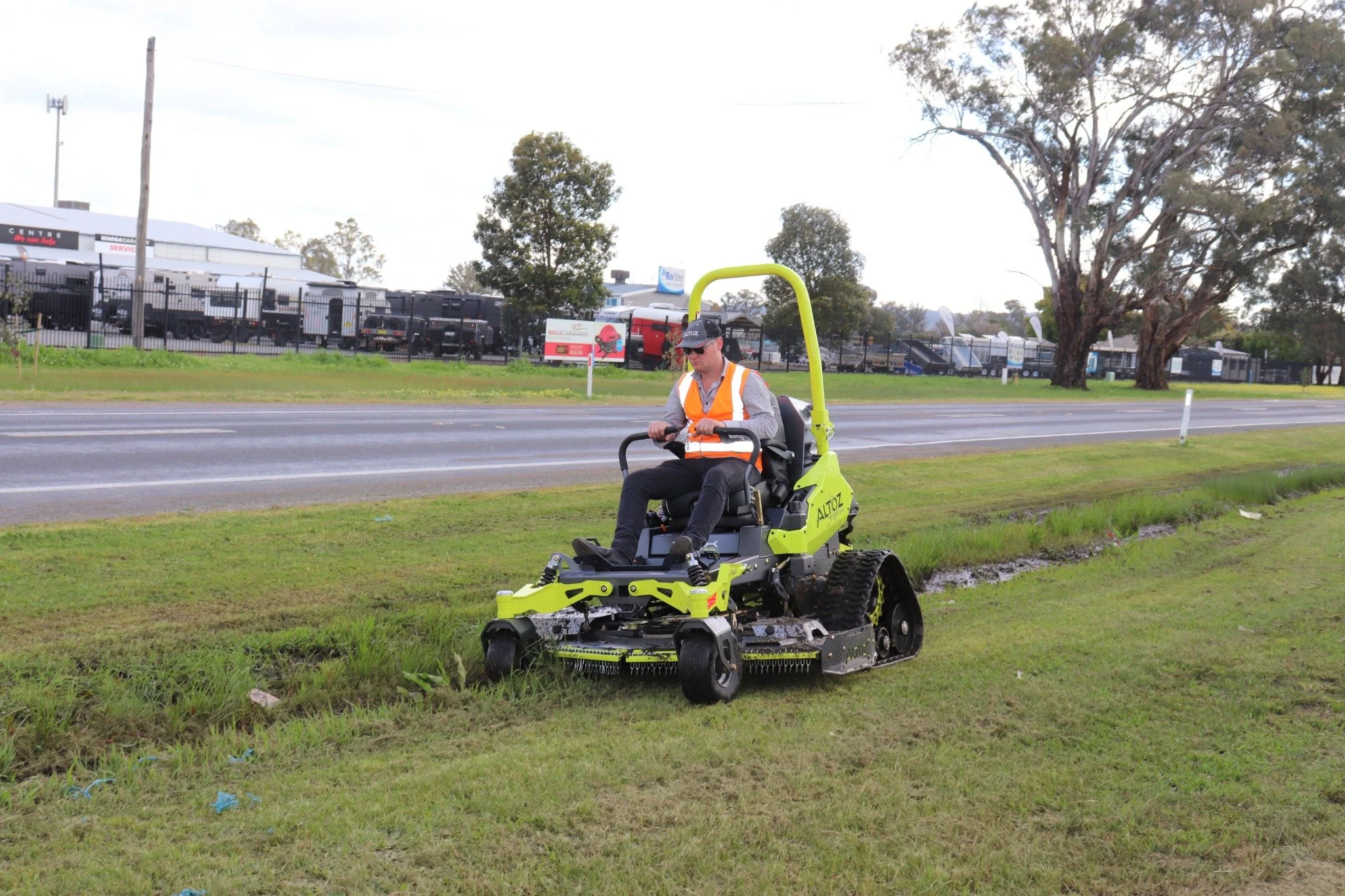

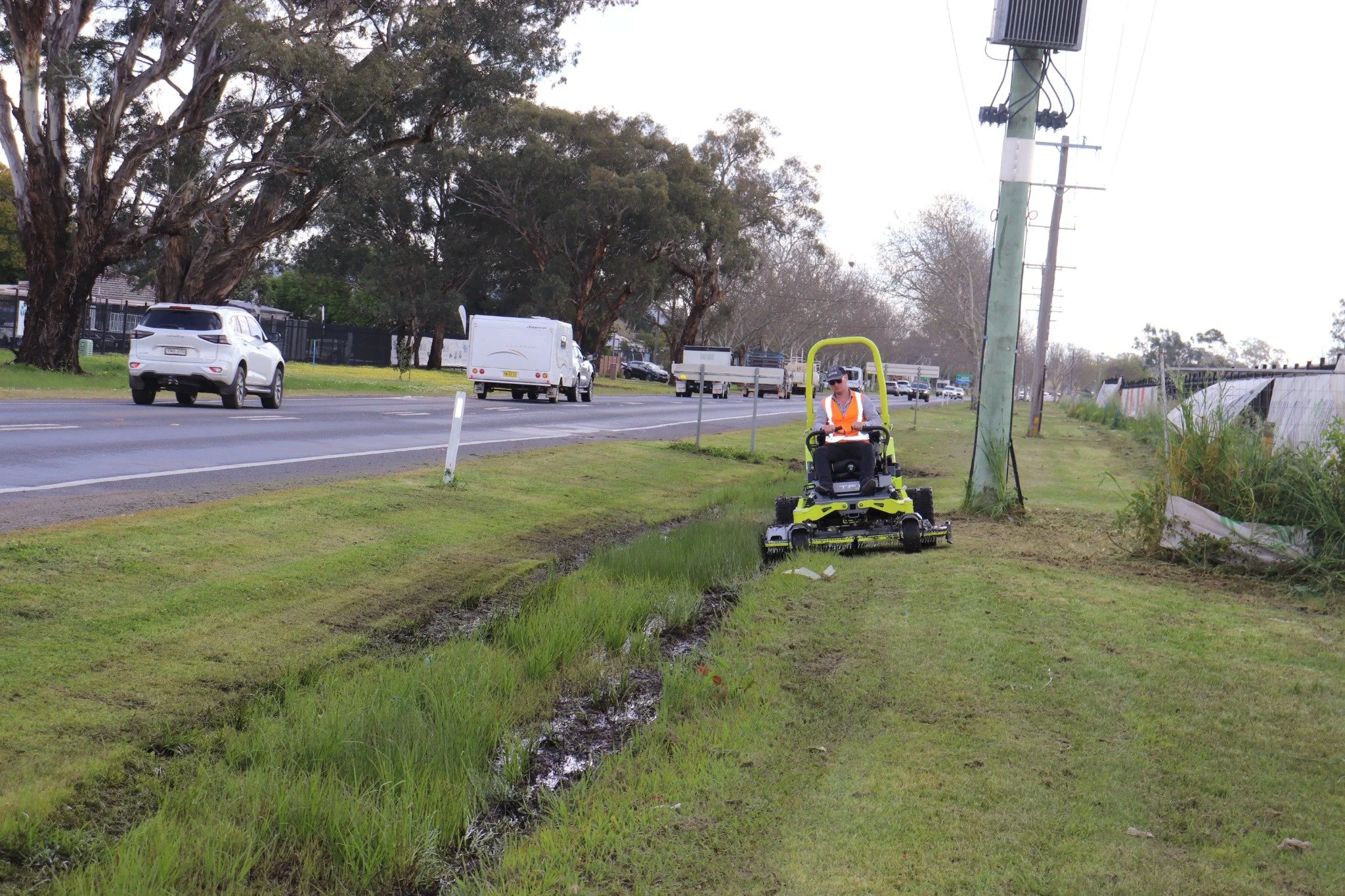

Tracked ground contact supports traction and stability for mowing around drainage infrastructure and retention areas.
Engineered from the ground up
Traction. Suspension.
Serious cutting capability.
01 / TerraFlex® all-terrain tracks
Get a grip on
challenging ground.
Standard TerraFlex tracks use an all-terrain tread pattern to deliver traction, stability and a smoother ride. Their broad ground contact helps minimise ground pressure, compaction and turf disturbance.
02 / Tri-Axis™ front suspension
A smoother ride.
More control.
Three independent pivot points on each side let the front wheels follow uneven terrain. Adjustable coil-over oil shocks help cushion the ride and maintain stability as the ground changes.
03 / 66-inch HV all-terrain deck
Built to process
heavy growth.
A fabricated steel deck with six swing blades and a counter-rotating right-hand spindle is designed for efficient material processing. Set the cut between approximately 76 and 178 mm to suit the job.
Built around the operator
Comfort and control.
Shift after shift.
Adjust the seat to suit the operator, select the drive range for the task and keep essential controls close at hand.
- 12-way adjustable suspension seatHigh back, armrests, lumbar support and weight adjustment.
- High / low range driveHydro-Gear ZT-5400 hydrostatic transmissions for responsive control.
- Practical working detailsFlat-free front tyres, fuel gauge and digital hour meter / tachometer.
- Capacity for bigger jobsA single, mid-mounted tank holds approximately 53 litres of petrol.
Optional equipment
Extend your reach.
Add the TFX Deck Wing Extension to reach further under fence lines and around site obstacles. It adds 16 inches of cutting width, bringing the total to 82 inches (approximately 2,083 mm).
The wing has a locking transport position, a reversible hardened-steel blade and a spindle cover. Optional equipment is quoted separately; confirm Australian availability with our team.
Know your machine
TFX 766 i
specifications.
Compare the cutting system, drive and operator equipment in one place.
Metric dimensions and capacities are approximate conversions of the manufacturer's published specifications. Confirm the Australian supplied configuration and accessory availability when ordering.
Operate within the limits in the operator manual and assess terrain, ground conditions, clearances and nearby hazards before mowing.
Engine & fuel
| Engine | Kawasaki® FX EFI |
|---|---|
| Power | 38.5 hp |
| Displacement / cylinders | 999 cc / 2 |
| Air filter | 5-inch cyclonic |
| Fuel | Petrol |
| Tank capacity | Approx. 53 L (14 US gal) |
| Tank position | Single, mid-mounted |
Cutting system
| Cutting width | 1,676 mm (66 inches) |
|---|---|
| Deck | HV all-terrain, fabricated steel |
| Deck construction | Laminated 7 + 7 gauge steel |
| Deck depth | 152 mm (6 inches) |
| Cutting height | 76–178 mm (3–7 inches) |
| Height increments | 6.35 mm (¼ inch) |
| Blades | 6 swing blades |
| Spindle arrangement | Counter-rotating right-hand spindle |
| Deck lift | Manual; powered lift optional |
| Blade tip speed | 18,500 ft/min |
| Clutch | Warner, 250 ft-lb |
Drive & ground contact
| Transmission type | Hydrostatic |
|---|---|
| Transmission | Hydro-Gear® ZT-5400 high / low range |
| Maximum forward speed | Approx. 17.7 km/h (11 mph) |
| Tracks | TerraFlex® all-terrain, 10 × 81 inches |
| Front tyres | 15-inch flat-free |
| Front suspension | Tri-Axis™ with adjustable coil-over oil shocks |
Dimensions & operator equipment
| Overall length | 2,438 mm (96 inches) |
|---|---|
| Height with ROPS up | 2,007 mm (79 inches) |
| ROPS | Folding |
| Seat | 12-way adjustable high-back suspension seat |
| Adjustments | Lumbar, operator weight, fore/aft and back tilt |
| Included equipment | Armrests, cup holder, fuel gauge, digital hour meter / tachometer |
Australian warranty & support
Speak with our team about warranty coverage for the Australian supplied TFX, servicing and parts support. Enquire on the TFX 766 i.

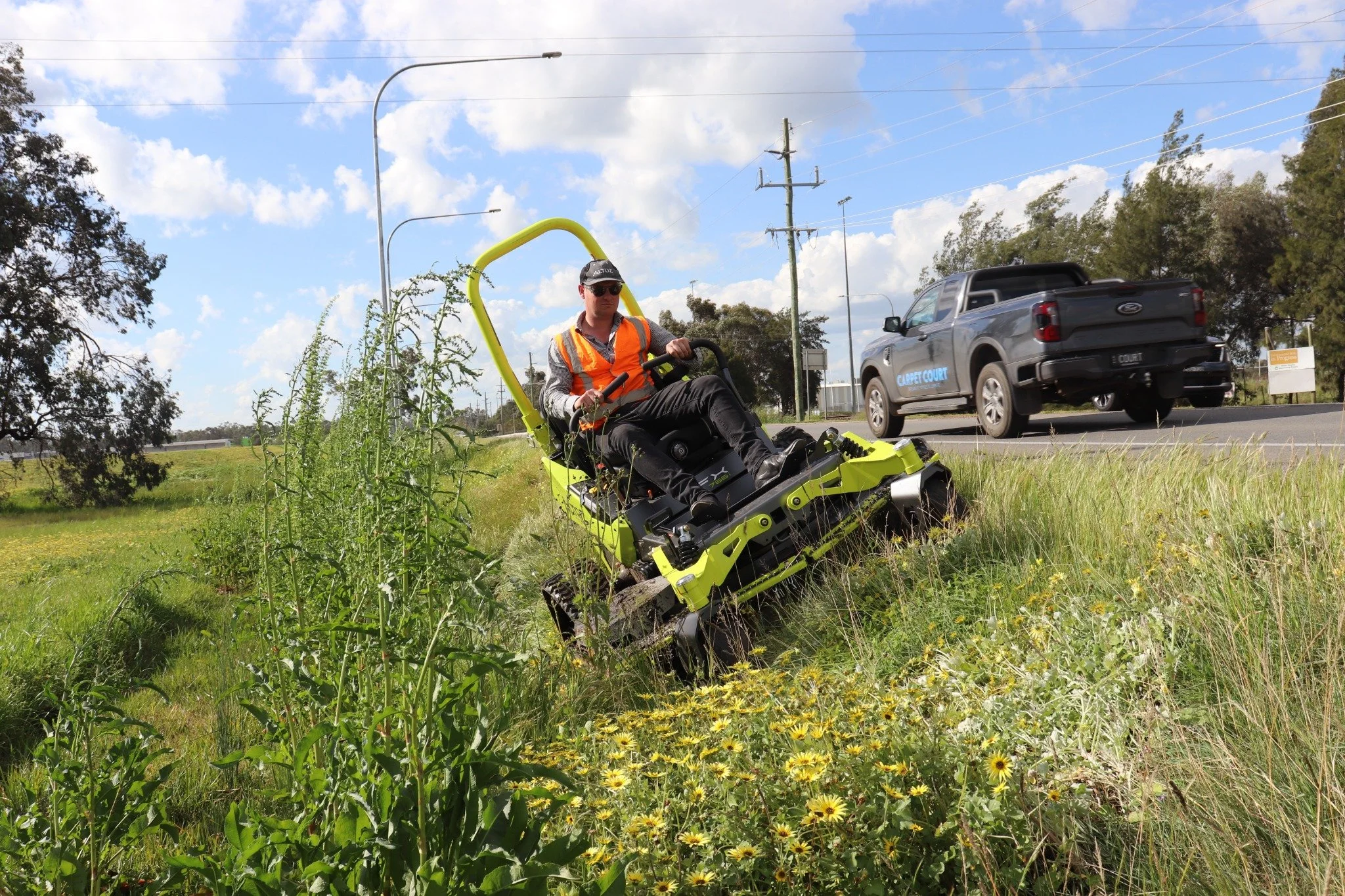

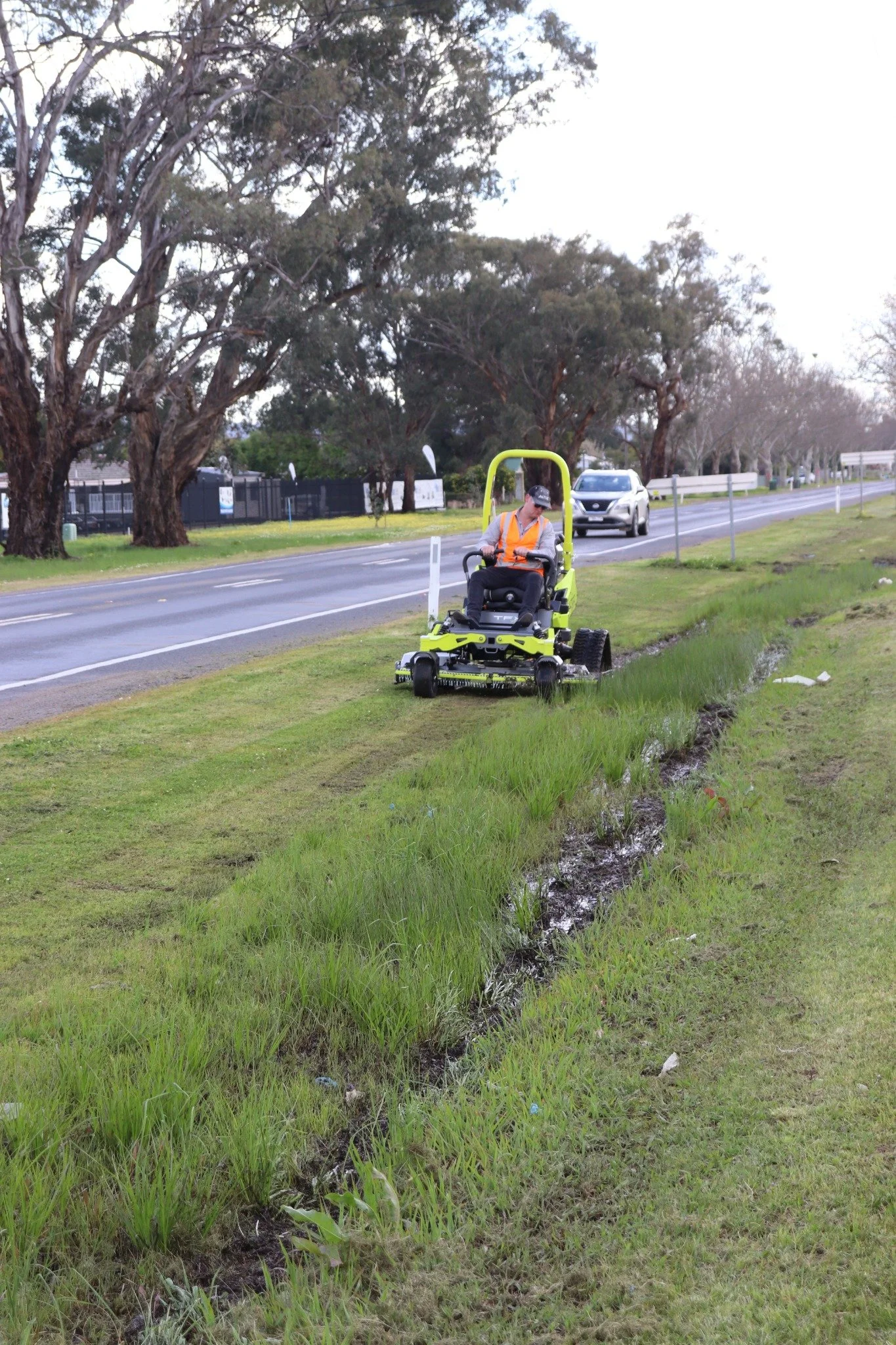

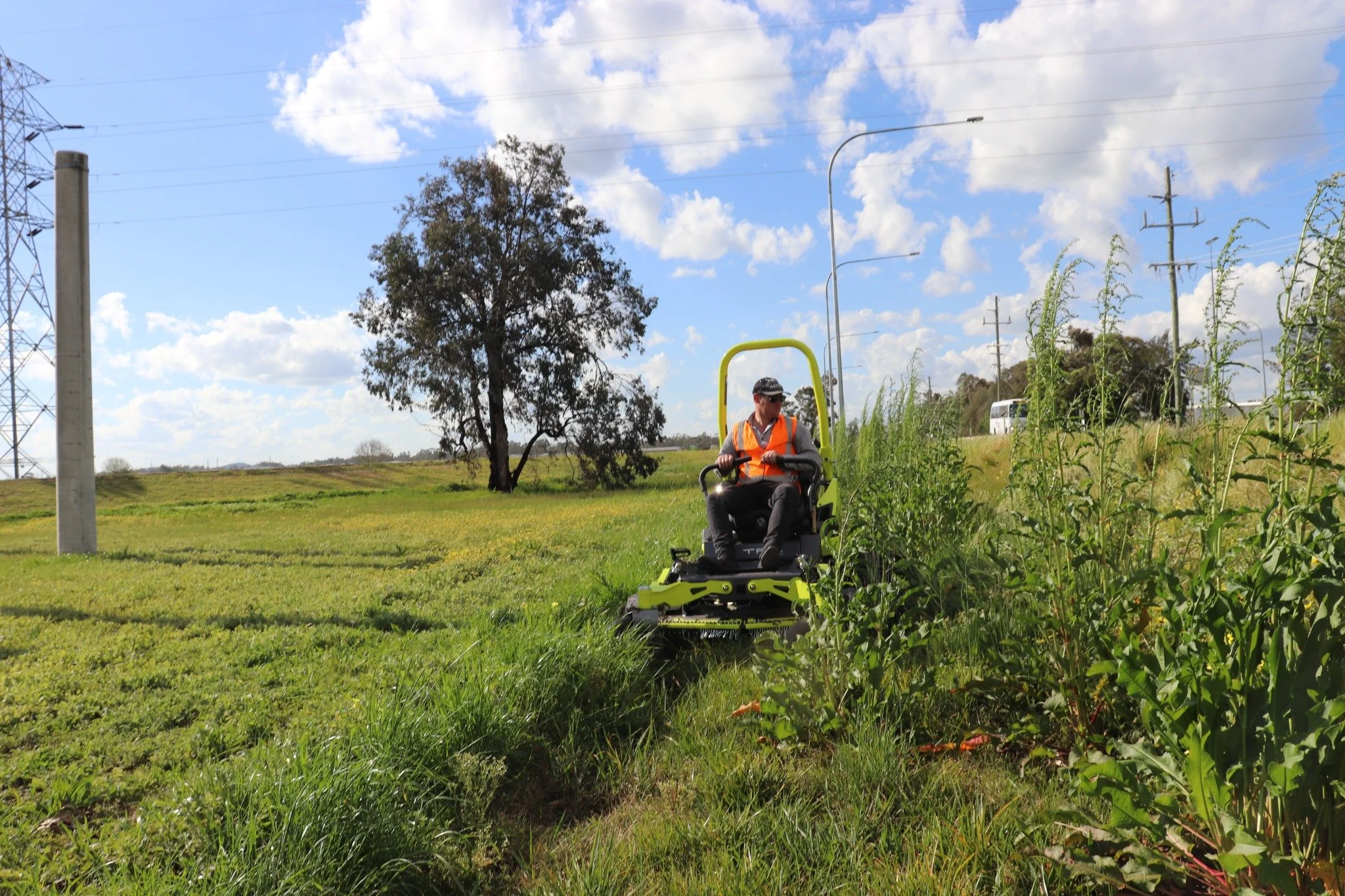

TFX in the field
See the TFX
in Australian conditions.
Select a photo to see the detail.
Put the TFX to work
Is the TFX right
for your next job?
Ask about pricing and configuration, book a demonstration, or call to discuss your terrain and mowing workload.
A$52,000 ex GST
Prices in Australian dollars. Optional accessories quoted separately.
